Using SWAT Viewer

Map Legend is here!

Configure thematic-map colors from the map legend.

Map legend is finally here! It appears directly below the variable list and makes thematic-map settings easier to review and adjust.

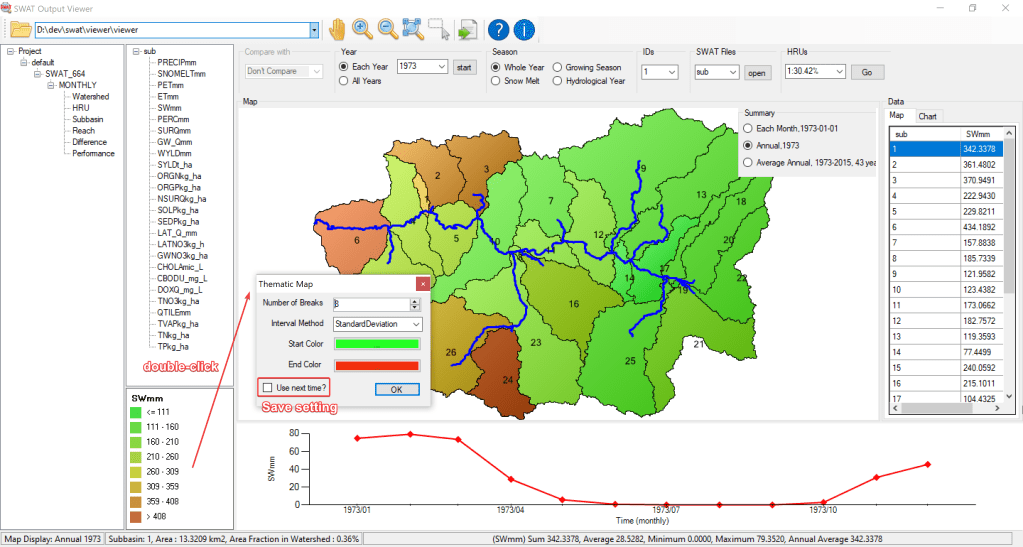

SWAT Output Viewer map legend and thematic map settings

Configure the thematic map

Double-click the legend to open the thematic-map settings window. The available settings are:

Number of Breaks
Interval Method: Equal Interval, Natural Breaks, Quantile, or Standard Deviation
Start Color
End Color

Select Use next time? to save these settings for future sessions.
